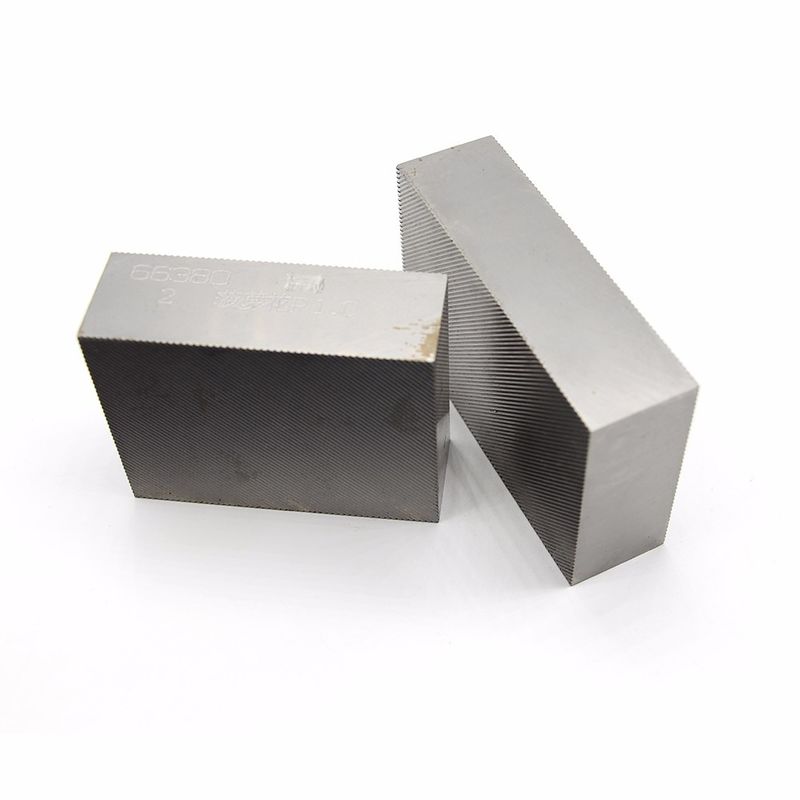

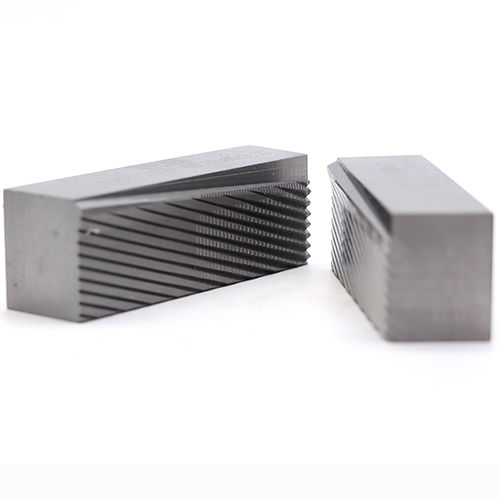

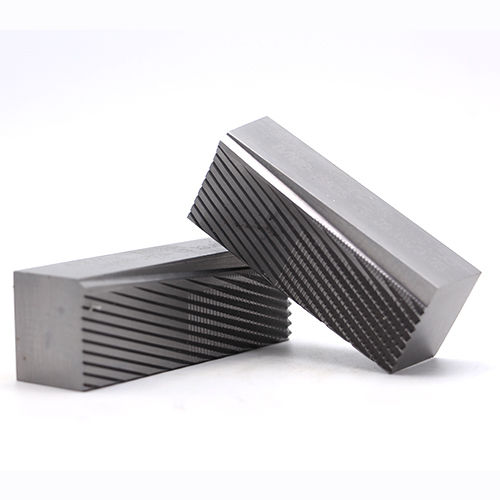

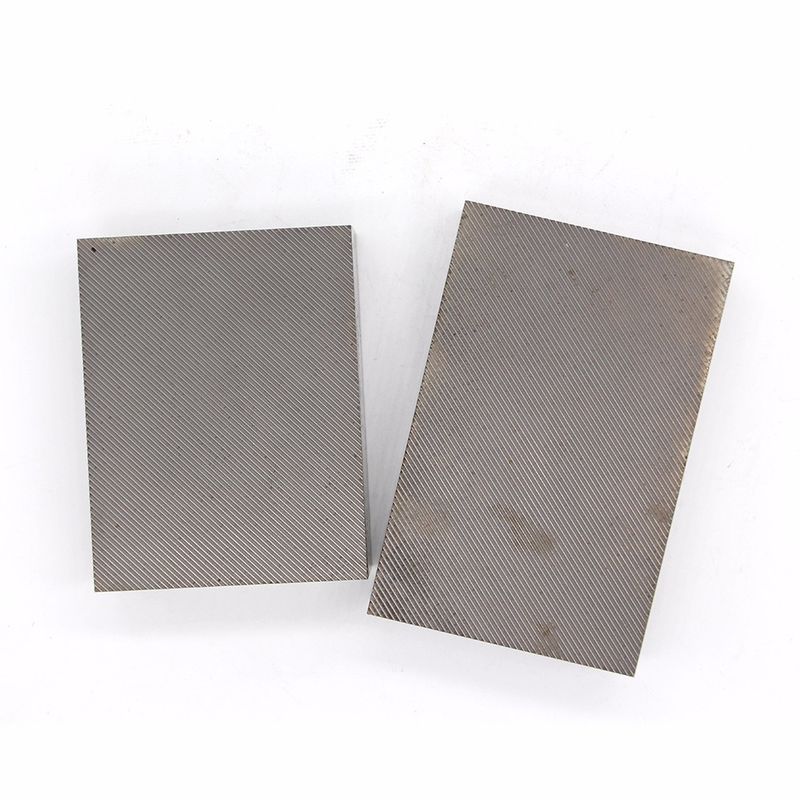

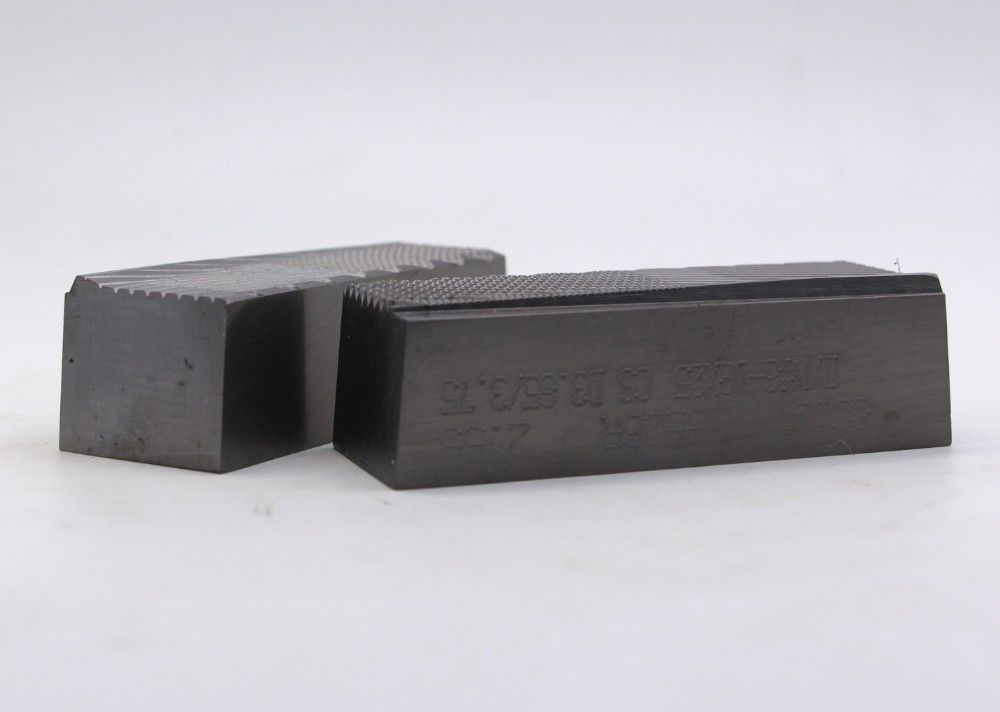

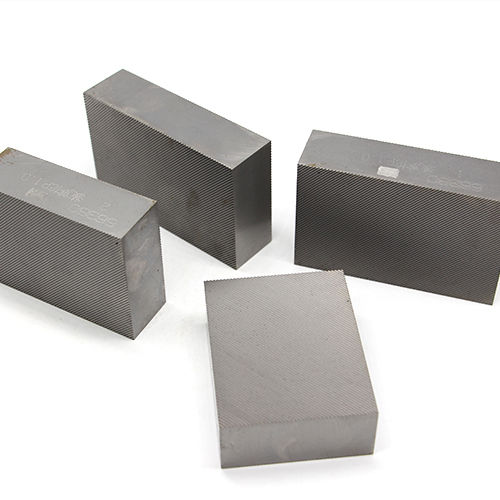

Name: DC53 Thread Rolling Dies for Self Tapping Screw Making Molds
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Aangepast
Price: 250.00 USD
Availability: InStock

Thuis > producten > Carbide punches en stijlt >

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

DC53 thread rolling dies

self tapping screw molds

carbide thread rolling dies

Plaats van herkomst:

Chongqing, China

Merknaam:

Henghui

Modelnummer:

Aangepast

Neem contact met ons op

Vraag een offerte

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Productgegevens

Vormmodus:

Die casting

Productmateriaal:

DC53

Materiaaltype:

HSS

Maataanpassing:

De tekening van de klant

Het type sterven:

A/B

Materiële samenstelling:

DC53+N of H9+N

Chemische samenstelling:

C: 0,95%, SI: 0,89%, Mn: 0,3%, P: 0,018%, S: 0,006%, CR: 7,7%, MO: 1,92%, V: 0,75%, W: 0,91%

Machinetype:

Verschillende maten (bijv. 0, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4)

Lengte bereik:

15-230 mm

Hoogtebereik:

20-150 mm

Diktebereik:

25-265 mm

Relatieve afwijking:

≤0.005mm

Concentriciteit:

≤0,01 mm

Hardheid het Testen:

Rockwell-hardheidsmeetapparaat

Meetnauwkeurigheid:

3D-beeld meetinstrument

Betaling en verzendvoorwaarden

Min. bestelaantal

VERWANTE PRODUCTEN

High Precision Carbide Die for Screw Extrusion Mould

Krijg Beste Prijs

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

Krijg Beste Prijs

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

Krijg Beste Prijs

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Krijg Beste Prijs

Neem contact met ons op

+8613983025528

hou@citool.com

86-023-60338218-60338218

Contact opnemen

Productbeschrijving

Henghui Self Tapping Screw Making Molds Thread Rolling Dies Plate DC53+N

Product Specifications

Attribute	Value
Shaping Mode	Die Casting
Product Material	DC53
Product	SCREW, Thread Rolling Dies
Product name	Screw Making Molds Thread Rolling Dies Plate HSS
Material	HSS
Size	Customer's Drawing
Certificate	ISO9001:2015
Type	A/B
Service	Customized OEM
Usage	For making screws
Packing	Carton

Product Description

Material Specifications

Our main case materials are DC53+N or H9+N

Size

Length*Height*thickness (for example, 90/105x25x25mm)

DC53 Chemical Composition

Element	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

Machine Type Specifications

MACHINE TYPE	S	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38,55	75	90
1/4	25	25,40,55,65,80	100	115
5/16	25	25,40,55,65,80,105	127	140
3/8	25	25,40,55,65,80,105	150	165
1/2	35	55,80,105,125,150	190	215
3/4	38	55,80,105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25,30,40,55	90	105
8R	25	25,30,40,55,65	108	127
250	25	25,40,55	110	125
DR125	20.8	25,40	73.3	86.2 (5。）
DR200	20.8	25,40,53	92.3	105.2 (53)
DR250	23.8	25,40,54	112	131.2 (Í)

Product Features

Henghui specializes in manufacturing high-quality screw thread rolling dies using premium raw materials. Our engineers professionally design each die according to customer specifications, ensuring:

High accuracy and dimensional stability
Exceptional strength and durability
Extended service life compared to competitors
Compatibility with most threading machines
Custom solutions for specialized applications

We offer comprehensive technical support and can advise on the optimal thread rolling die for your specific requirements. Contact us with your technical inquiries for a response within 24 hours.

Manufacturing Capabilities

Chongqing Henghui Precision Mold Co., Ltd. operates with advanced CNC equipment and strict quality control:

CNC lathes and machining centers
Precision grinding and EDM machines
Comprehensive testing equipment including hardness testers and 3D measuring instruments
ISO9001:2015 certified quality management
Dimensional accuracy within 0.005mm
Concentricity control within 0.01mm
